LED Strip · Specialty · RGBW SPI

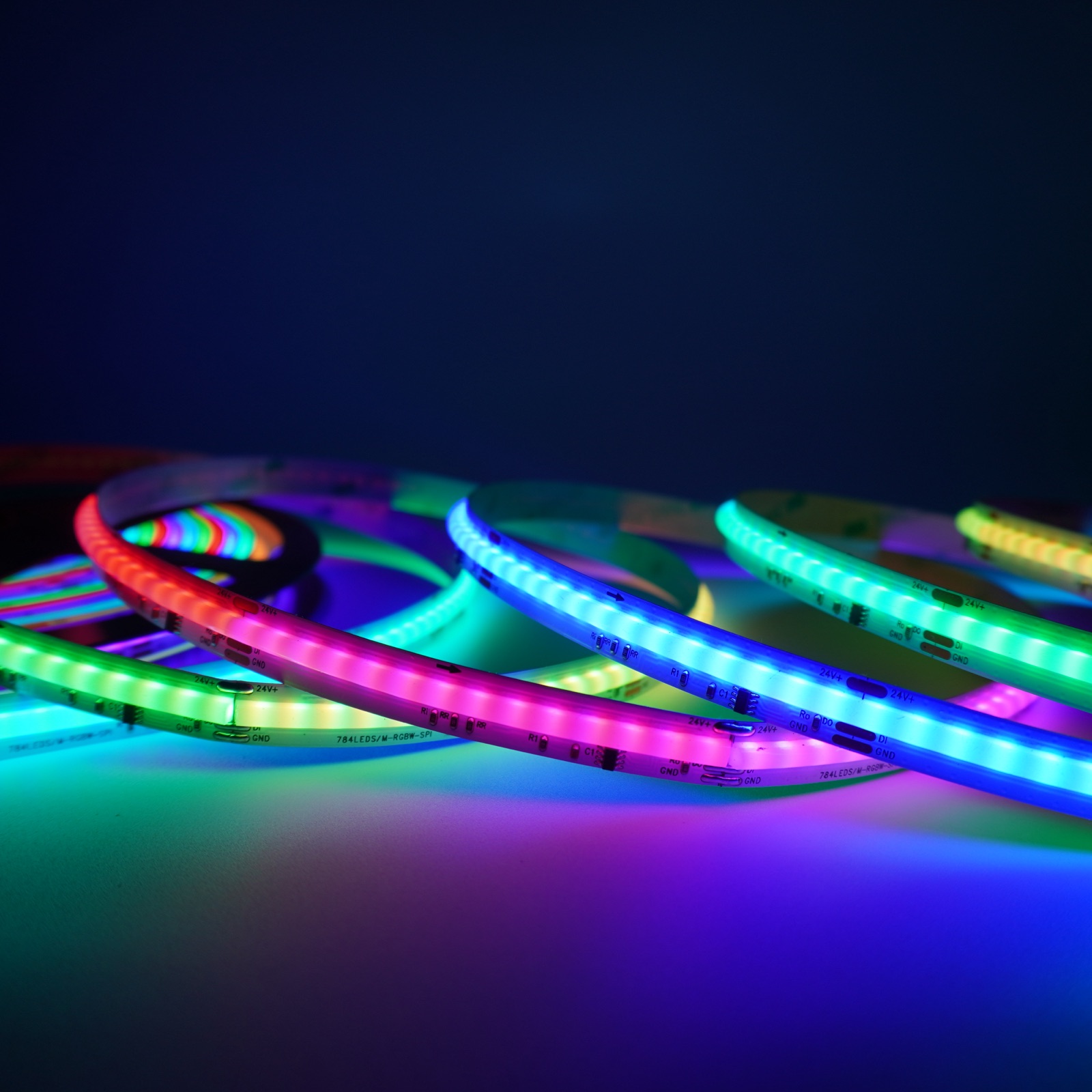

COB LED Strip RGBW 24V SPI Magic Color
Addressable RGBW COB strip — per-pixel control with a real white chip, pairs with an SPI driver
฿4,380
฿5,840 -25%
/ 10m roll · ฿438 per metre
Free shipping in Thailand on every order · price excludes 7% VAT
Size the kit to your run Auto-matched
10 metres
1 metres 40 metres
2 · Here is your kit
Total load
Shipping
Kit total
Nationwide delivery
Every order, no minimum
2 years warranty
Claim with us — no factory return
Cut to length
Cut at the marked interval, wired for you
Installers available
Nationwide — rates depend on the area and the site
Full specifications
- Voltage
- 24V DC
- Length
- 10 m/roll
- Color
- RGBW SPI addressable (16.7M colours + white)
- LED Chip
- COB 784LED/m
- IC Chipset
- WS2814 (SPI addressable RGBW)
- Lumens
- 1923 Lumen/m
- Power
- 23W/m
- Cut Interval
- 50mm
- Beam Angle
- 180°
- Dimension
- 12x1.6 mm
- IP Rating
- IP20 (Indoor)
- Warranty
- 2 years
Actual cross-section
Drawn to scale from the spec — check it fits the profile you already have.
12 × 1.6 mm
- Beam angle
- 180°
- IP rating
- IP20 (Indoor)
- Cut interval
- 50mm
Profiles that fit this stripStrip is 12 mm wide — the groove must be at least this
- Aluminum Profile — Recessed FloorYW Style12.2mm +0.2View
- Aluminum Profile FlangedRecessed YW Style (1 meter) · Recessed YW Style (2 meters)12.5mm +0.5View
- Aluminum Profile SlimUH Style · U Style (1 meter) · U Style (2 meters)12.5mm +0.5View
- Aluminum Stair Nosing ProfileSingle option12.5mm +0.5View
- Aluminum Profile BlackU Style · YW Style12.5mm +0.5View
- Aluminum Profile — Recessed FloorU Style13.2mm +1.2View
The green figure is the gap left beside the strip. Width only — for a thick strip, check the channel depth too.
